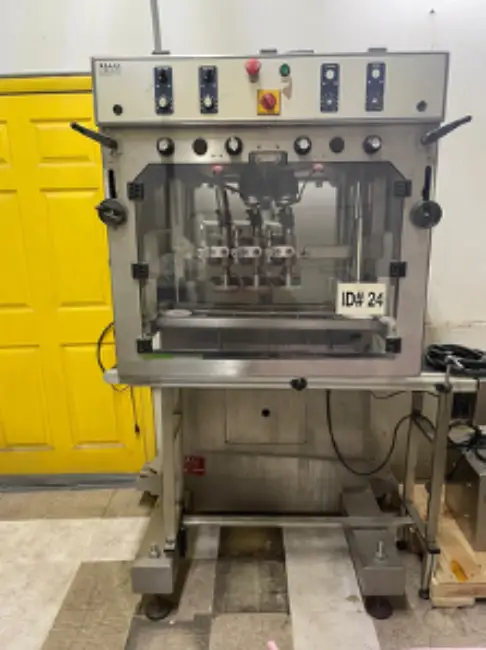

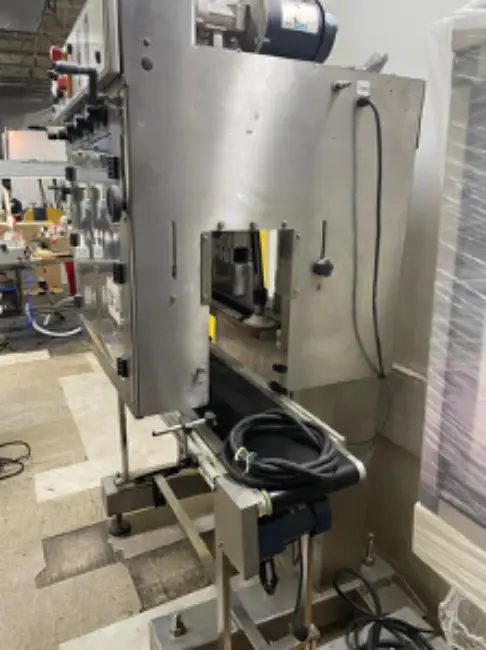

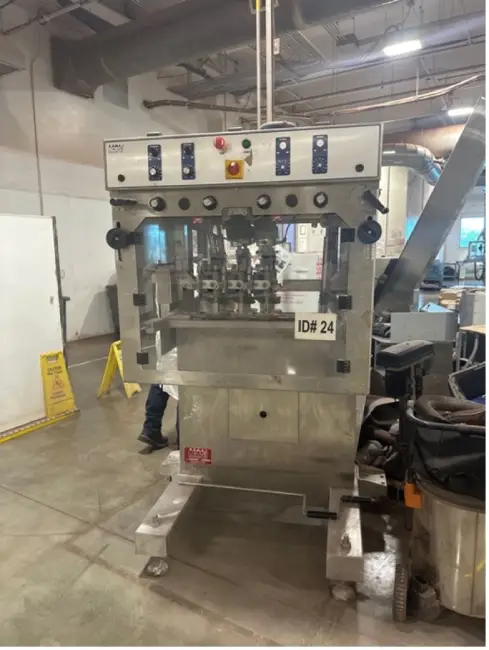

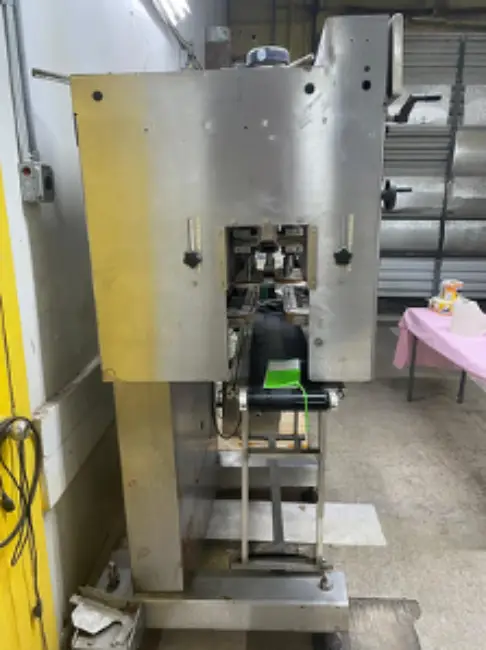

6-spindle cap tightener for post-capping torque adjustment. Ensures consistent torque across all containers. Compact footprint.
This capping machine can handle a wide range of caps and containers without change parts and is more forgiving and easier to set up than most bottle capping equipment in the industry.
Acasi Trucap-6
Includes the following features and options:
- Inline cap tightener with 6 spring-loaded spindles
- Pneumatic clutches with pressure regulator for each one
- Heavy-duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
- Heavy-duty linear carriage system for height adjustability.
- All shafts and threaded rods manufactured in 304 stainless steel.
- Front covers with safety interlock switches.
- Top-driven to ensure no product spillage into drive assembly.
- Adjustable height to accommodate containers from 1 inch to 14 inches tall.
- Independent spring-loaded bottle capping discs for better torque and misalignment forgiveness.
- Torque can be adjusted while the machine is running.
- Clutches located away from capping discs to avoid corrosion.
- Heavy-duty gear-driven mechanism, no belts used for power transmission. Adjustable speed 1/2 Hp drive motor for capping discs.
