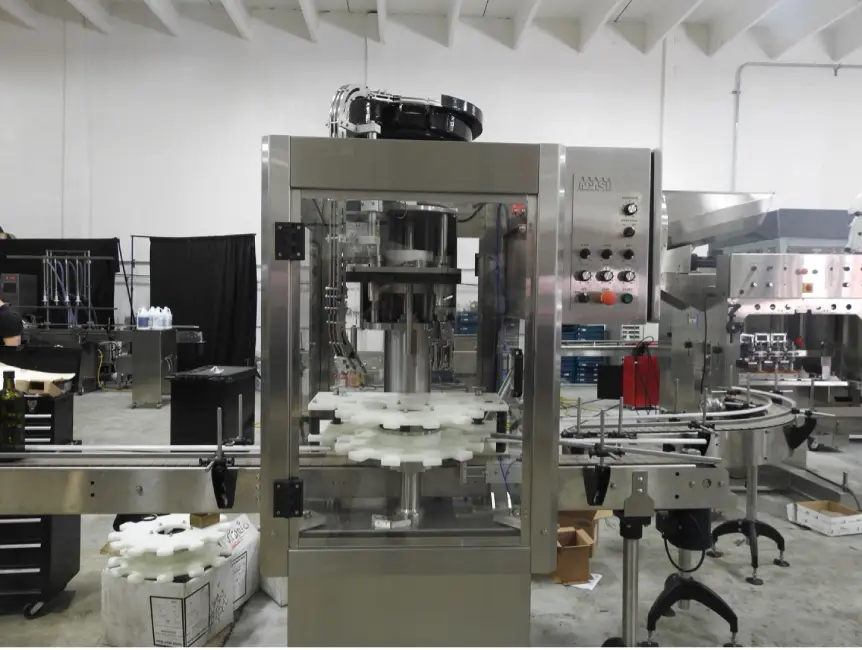

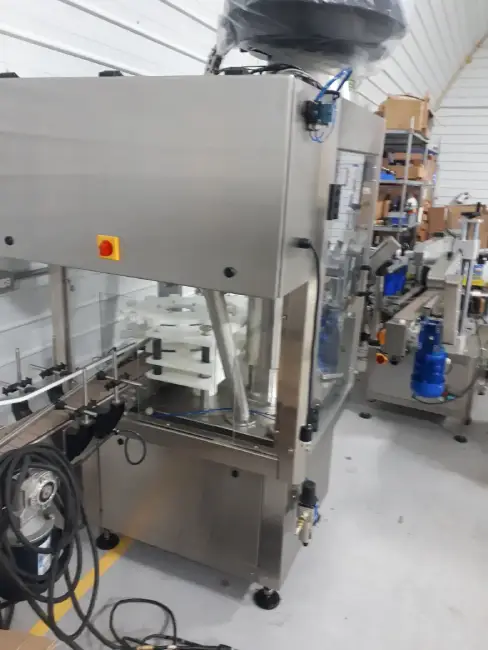

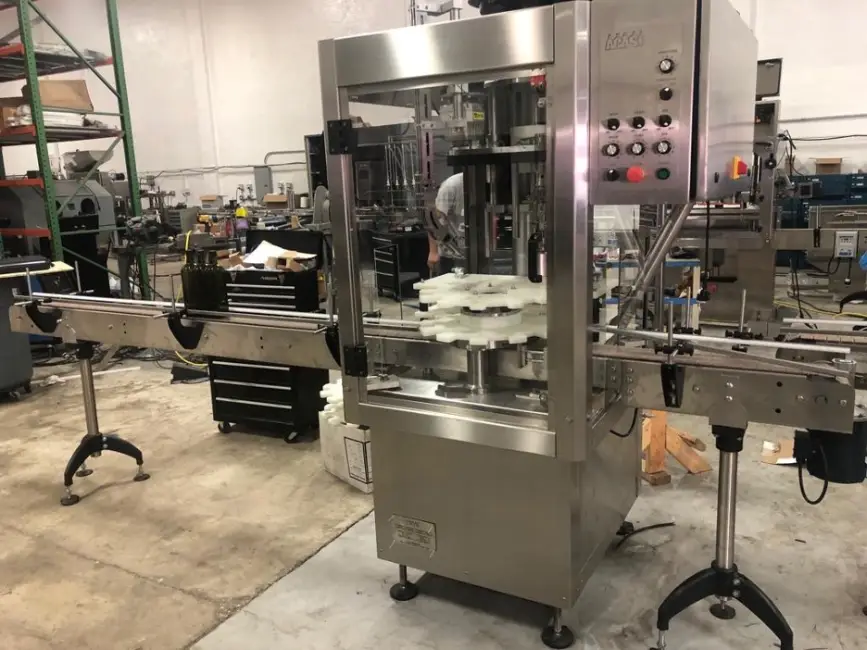

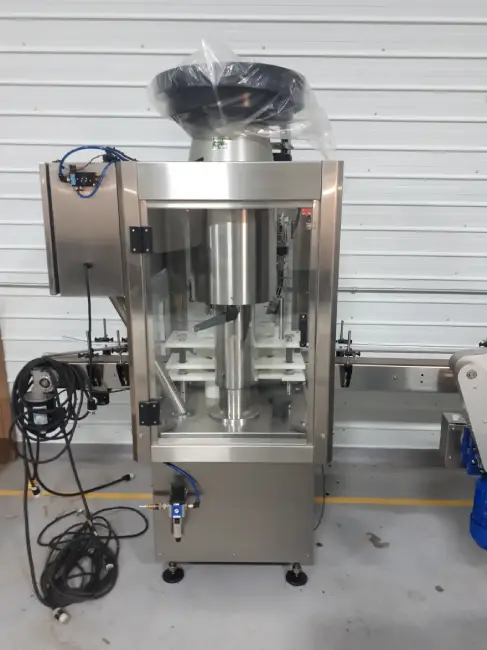

Single-head ROPP capper with vibratory bowl cap feeder
Includes the following features and options:
- Automatic single-head ROPP capper — Model Acasi ROP1-VIB
- Vibratory bowl cap feeder and cap chute

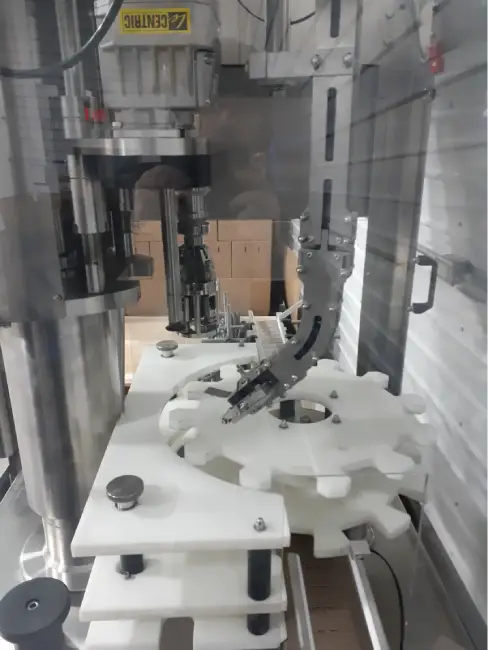

- Acasi ROPP capping head model VA90, manufactured in 304 stainless steel and hardened forming discs
- Tooling and change parts for 250 ml, 500 ml, and 750 ml square glass bottles
- Machine is fully adjustable from 7 inch to 14 inch high containers
- Center CAM manufactured in special cam rated plastic material
- Automatic start and stop with presence or absence of containers
- Jamming clutches with electric signal for shutdown on product jamming (prevents major damage to parts and minimizes spills)
- 2 Hp AC motor with frequency drive speed control
- Stainless steel electric enclosure
- Heavy duty 304 stainless steel welded frame
- Stainless steel enclosure with polycarbonate windows and safety switches
- All shafts from 1/4 to 2-1/2 inches manufactured in 304 stainless steel
- Gear driven transmission to avoid timing loss
- Complete height adjustment with bottle setting guide for quick changeovers

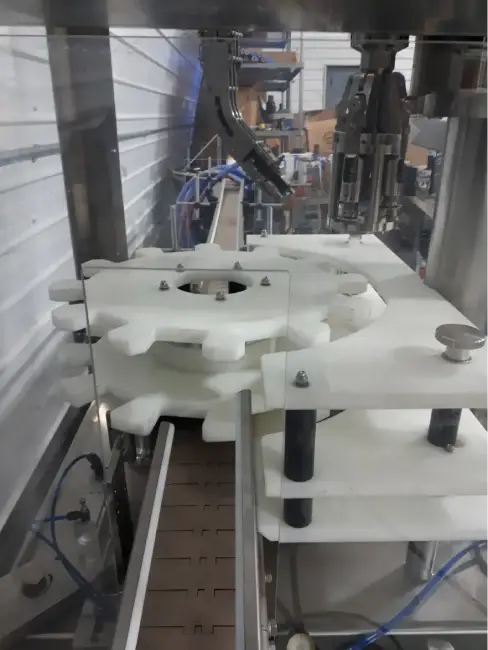

- Tool-less changeovers for star wheels and most change parts
- 13 ft conveyor, 4-1/2" wide acetal chain, with VFD
- 208V 3-phase | 5 CFM @ 80 psi
