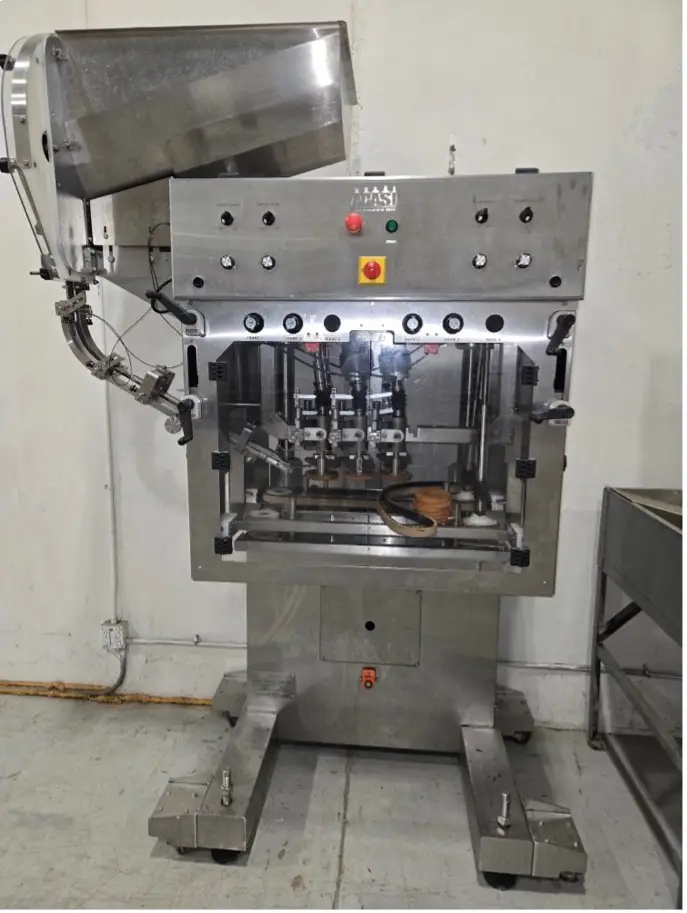

Resina-Style Capper

6-spindle inline capper with vertical wheel cap sorter. Handles a wide variety of flat and flip-top caps. Fully automatic operation with easy changeover.

This automatic capping machine is currently set up to run 38mm plastic screw-on caps. The Acasi cappers feature spring-loaded spindles, which are more forgiving and easier to set up than most bottle capping equipment in the industry.

Acasi Trucap-6-Vert

Includes the following features and options:

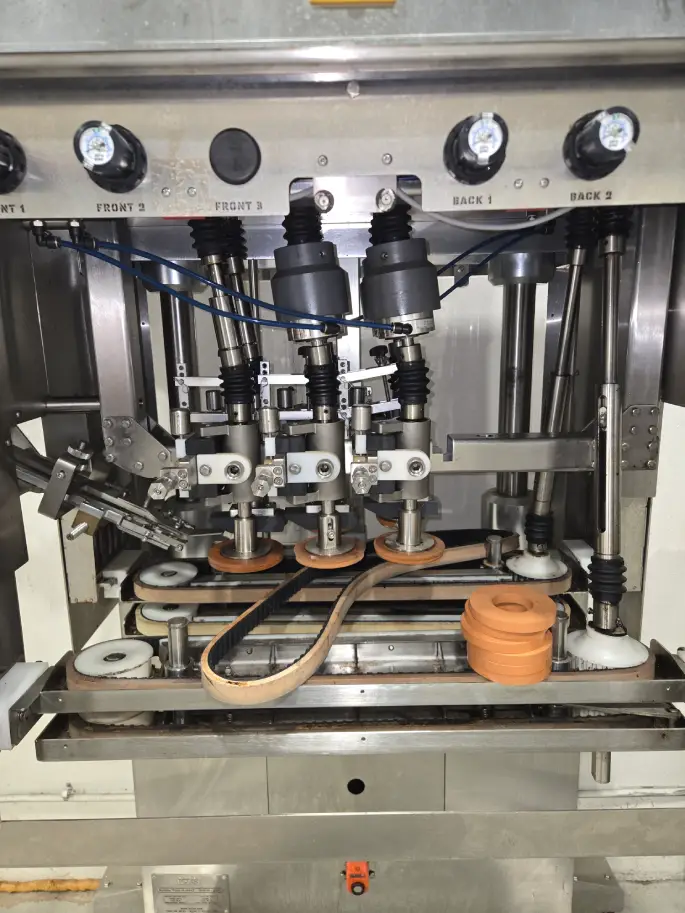

• Inline cap tightener with 6 spring-loaded spindles
• Pneumatic clutches, includes pressure regulator for each one
• Double belts
• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
• 110V, 50Hz/60Hz, 10 Amps | 5 CFM @ 80 psi
• Heavy duty linear carriage system for height adjustability.
• All shafts and threaded rods manufactured in 304 stainless steel.
• Front covers with safety interlock switches standard.
• Top driven to insure no product spillage into drive assembly.
• Adjustable height to accommodate containers from 1 inch to 14 inches tall.

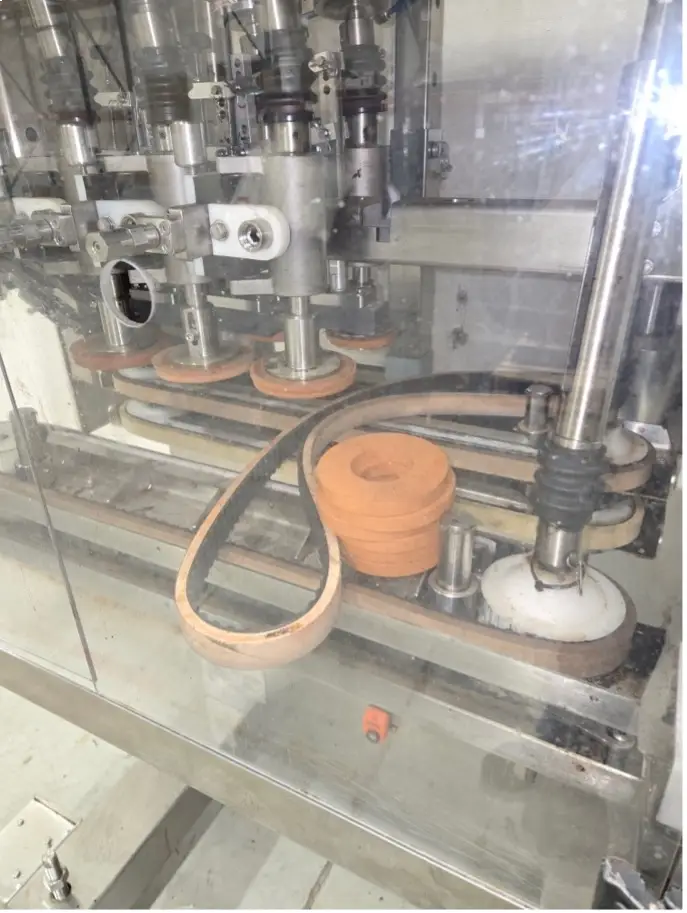

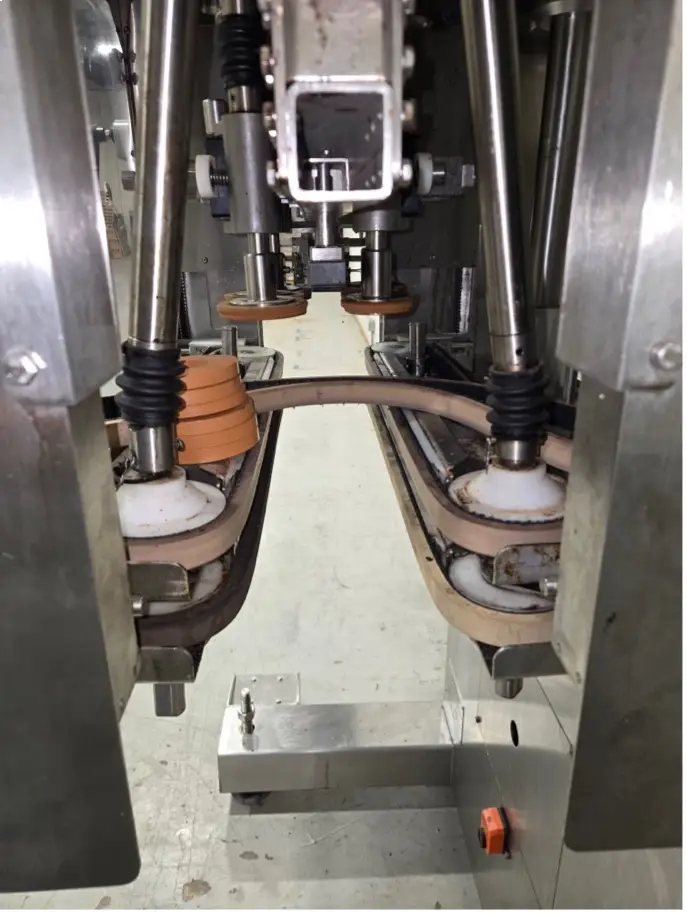

• Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
• Torque is able to be adjusted while the machine is running.
• Clutches located away from capping discs to avoid corrosion.
• Heavy-duty gear-driven mechanism, no belts used for power transmission. Adjustable speed 1/2 Hp drive motor for capping discs.

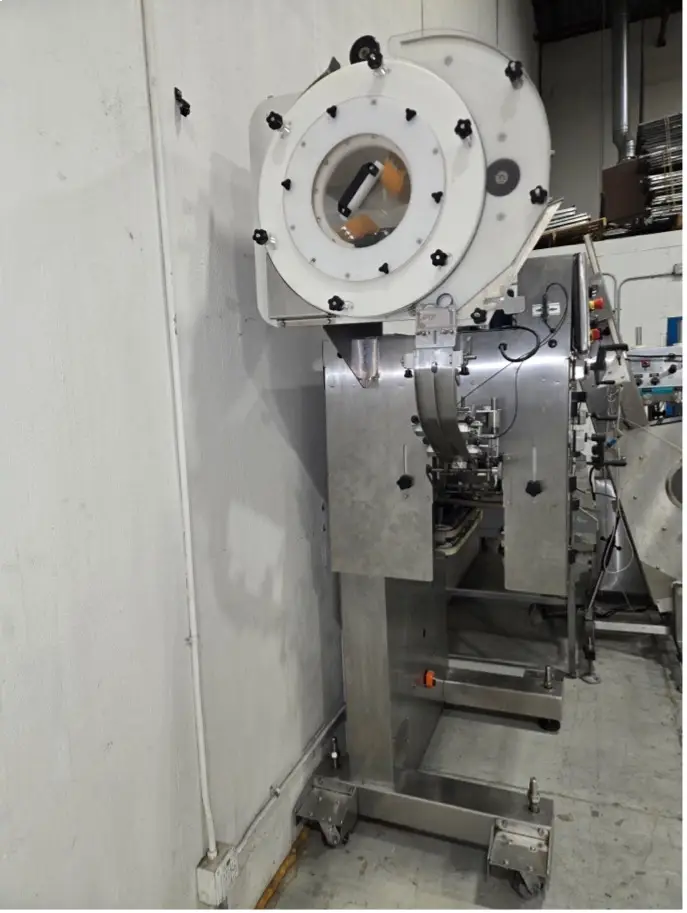

• Vertical wheel cap sorter requires no fine-tuning. Mechanical bottle cap sorting.
• Easy changeover for caps from 15mm to 53mm in diameter, with appropriate tooling
• 3 Cubic feet integrated cap hopper
