ACASI ROP1-VIB
Includes the following features and options:
-

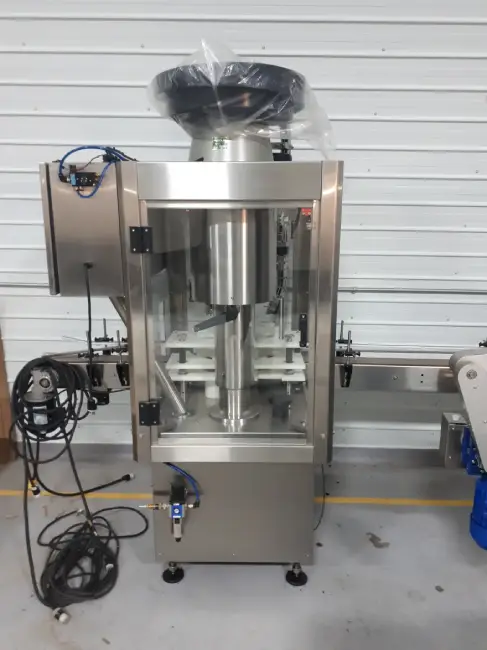

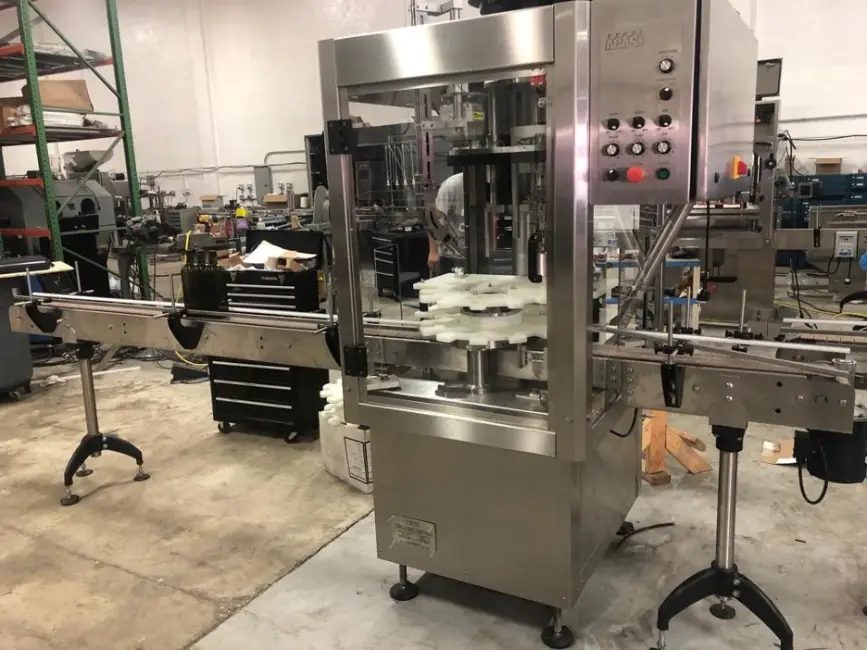

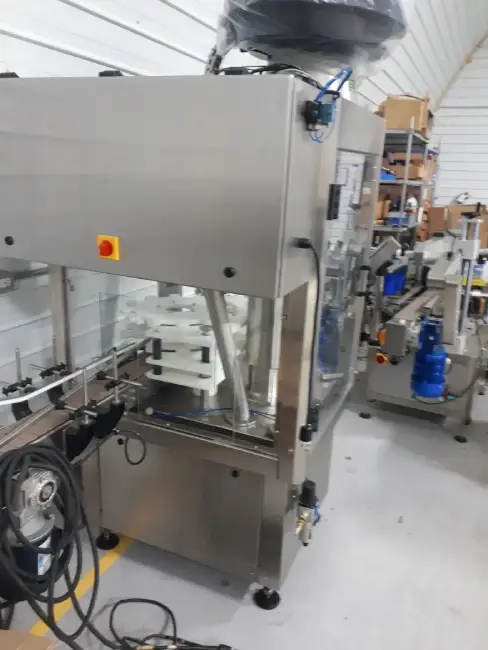

Automatic single-head ROPP capper - MODEL ACASI ROP1-VIB
-
Vibratory bowl cap feeder and cap chute
-

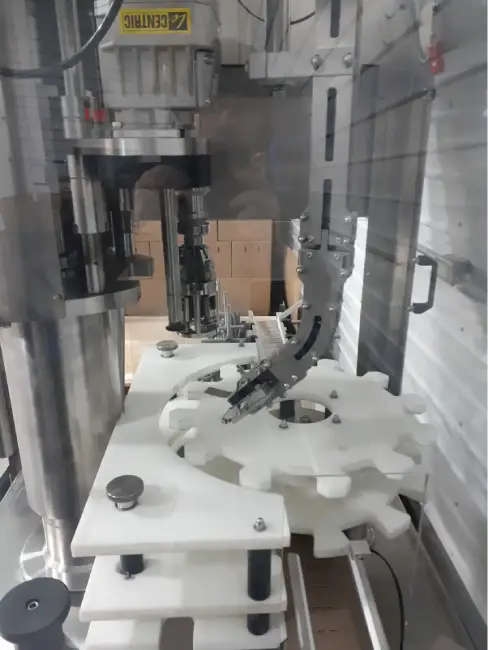

Acasi ROPP capping head model VA90, manufactured in 304 stainless steel and hardened forming discs
-
Tooling and change parts for 250 ml, 500 ml, and 750 ml square glass bottles. Machine is fully adjustable from 7 inch to 14 inch high containers
-
Center CAM manufactured in special cam rated plastic material
-
Automatic start and stop with presence or absence of containers
-
Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills)
-
2 Hp Ac motor with frequency drive speed control
-
Stainless steel electric enclosure
-
Heavy duty 304 Stainless steel welded frame
-
Stainless steel enclosure with polycarbonate windows and safety switches
-
All shafts from 1/4 to 2-1/2 inches manufactured in 304 stainless steel
-
Gear driven transmission machine to avoid timing loss
-
Complete height adjustment with bottle setting guide for quick changeovers
-

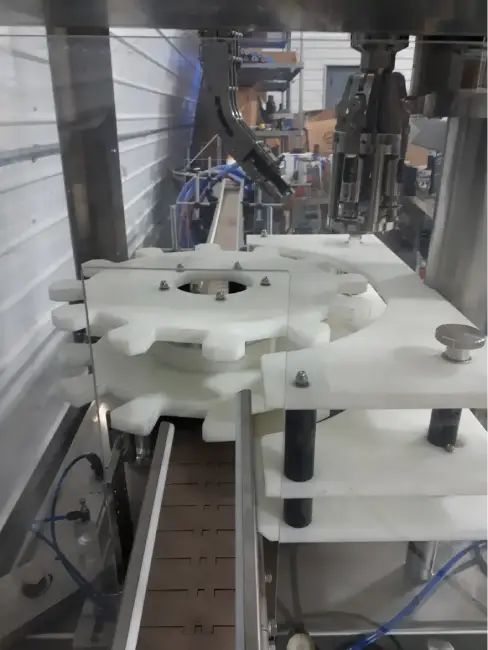

Tool less changeovers for star wheels and most change parts
-
13 ft Conveyor, 4-1/2" wide acetal chain, with VFD
-
208V 3-phase | 5CFM @ 80psi
